Wholesale ❤️ Moen M-Core™ 1/2 in. Cold Expansion PEX Pressure Balancing Valve ✔️ - Image 3

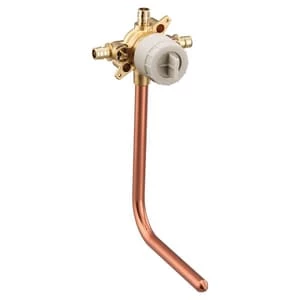

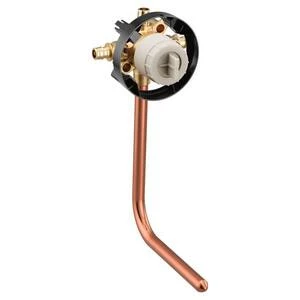

Wholesale ❤️ Moen M-Core™ 1/2 in. Cold Expansion PEX Pressure Balancing Valve ✔️

Original price was: $78.19.Current price is: $54.73.

SKU: 8927478 Categories: Bathtub & Shower Faucet Valves, Faucet Valves, Pressure Balancing Valves

Free Shipping over $25
Quality products, fair prices.
Safe Shopping Guaranteed
Control the delivery date and try to deliver it in the fastest time

M-CORE valves, with 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home

Feature volume control, allowing you to adjust the flow of water forgreater functionality

Improved style options, including the perfectly matchedmixing and transfer trim, are available

M-CORE 3-Series offers a full line of finish, style and platform options for every shower configuration

Offers design flexibility to choose your trim after the valve installation, so you can take your time with your style and finish selections

M-CORE’S adaptability allows the valves to be roughed-in with the option of functionality and style changes that don’t require removing or changing the valve(s)

Features an integrated mounting bracket that secures the valve directly to a brace, streamlining the installation process and saving time

Offers a precise temperature limit stop adjustment, and the integrated test cap allows installers to easily flush and test the system without having to remove or install the cartridge

M-CORE mixing and transfer valves are available in several inlet and outlet plumbing options to meet the needs of the installers

Backed by Moen’s Limited Lifetime Warranty

ADA Compliant	No
High Pressure	200
Weight	1.6
WaterSense Labeled	No
Valve Type	Pressure Balancing Valve
Valve Size	1/2 in
Valve Body Style	4-way
Valve Body Material	Brass
Plug Diameter	Yes
Origin	Domestic
NSF Certified	No
IAPMO Listed	No
End Connections	F1960
ANSI Specifications	ANSI A112.18.1
End Connection 4	F1960
End Connection 3	F1960
End Connection 2	F1960
End Connection 1	F1960
Diameter	4-1/4 in
Depth	2-1/2 in
Collection	M-Core™
CSA Certified	CSA B125.1
Application	Commercial, Residential
ASSE Standards	ASSE 1016
ASME Specifications	ASME A112.18.1
Width	3-5/8 in
