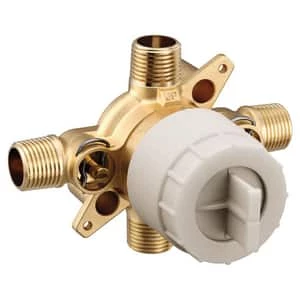

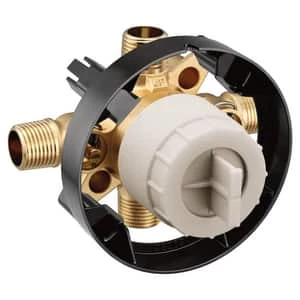

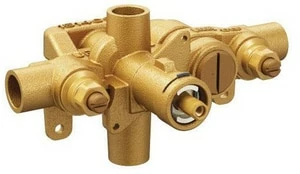

Wholesale 🧨 Moen M-Core™ 1/2 in. CC and IPS Pressure Balancing Valve 🧨

Original price was: $71.72.Current price is: $50.20.

SKU: 8927528 Categories: Bathtub & Shower Faucet Valves, Faucet Valves, Pressure Balancing Valves Tag: Brass

Free Shipping over $25
Quality products, fair prices.
Safe Shopping Guaranteed
Control the delivery date and try to deliver it in the fastest time

4 Ports

Equipped with the Moentrol® control valve allowing you to adjust both water volume and temperature

Pressure-balancing feature helps maintain temperature even when other water sources in the house are in use

Built on the Moen M-PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing

Offers design flexibility to choose your trim after the valve installation, so you can take your time with your style and finish selections

M-CORE’S adaptability allows the valves to be roughed-in with the option of functionality and style changes that don’t require removing or changing the valve(s)

Features an integrated mounting bracket that secures the valve directly to a brace, streamlining the installation process and saving time

Offers a precise temperature limit stop adjustment, and the integrated test cap allows installers to easily flush and test the system without having to remove or install the cartridge

M-CORE mixing and transfer valves are available in several inlet and outlet plumbing options to meet the needs of the installers

Backed by Moen’s Limited Lifetime Warranty

ADA Compliant	No
Plug Diameter	Yes
Length	5-1/2 in
MA Approved	Yes
Material	Brass
NSF Certified	No
Number of Handles	Two Handle
Origin	Domestic
Product Type	Pressure Balancing Valve
High Pressure	200
UL Listed	No
Valve Body Material	Brass
Valve Body Style	4-way
Valve Size	1/2 in
Valve Type	Pressure Balancing Valve
WaterSense Labeled	No
Weight	3.14
IAPMO Listed	No
Height	6 in
ANSI Specifications	ANSI A112.18.1
Depth	7 in
ASME Specifications	ASME A112.18.1M
ASSE Standards	ASSE 1016
Application	Residential
BAA Compliant	Yes
CSA Certified	CSA B125
Cartridge Type	1225
Collection	M-Core™
Diameter	4-1/4 in
GSA Approved	No
End Connection 1	CC
End Connection 2	CC
End Connection 3	CC
End Connection 4	CC
End Connections	CC
Faucet Connection Size	1/2 in
Flow Rate	2.5 gpm
Width	7 in
