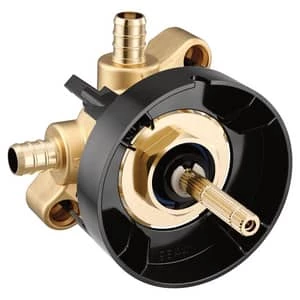

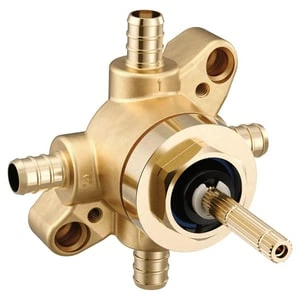

Top 10 🎁 Moen 1/2 in. PEX Transfer Valve 👏

Top 10 🎁 Moen 1/2 in. PEX Transfer Valve 👏 - Image 2

Top 10 🎁 Moen 1/2 in. PEX Transfer Valve 👏 - Image 3

Top 10 🎁 Moen 1/2 in. PEX Transfer Valve 👏

Original price was: $104.79.Current price is: $73.35.

SKU: 8846855 Categories: Bathtub & Shower Faucet Valves, Faucet Valves, Transfer & Diverter Valves Tag: Brass

Free Shipping over $25
Quality products, fair prices.
Safe Shopping Guaranteed
Control the delivery date and try to deliver it in the fastest time

M-CORE Transfer Valves can control 2 or 3 showering devices, a simple transfer cartridge modification changes the valve’s flow from two outlets to three outlets

When using 2 showering devices, the valve has 2 independent and 1 shared functions

When using 3 showering devices, the valve has 3 independent and 3 shared functions

IMPORTANT: When using 3 Showering Devices, transfer valve cartridge must be modified. Simple cartridge modification changes the valves flow from two outlets to three outlets. See Transfer Valve Instructions for additional information.

IMPORTANT: When using 2 Showering Devices, designated outlet 3 must be CAPPED. Caps sold separately.

M-CORE Transfer Valves have a simplified trim offering, and suite matching handles with integrated and mixing valves

Offers design flexibility to choose your trim after the valve installation, so you can take your time with your style and finish selections

M-CORE’S adaptability allows the valves to be roughed in with the option of functionality and style changes that don’t require removing or changing the valve

Features an integrated mounting bracket that secures the valve directly to a brace, streamlining the installation process and saving time

M-CORE mixing and transfer valves are available in several inlet and outlet plumbing options to meet the needs of the installers

ADA Compliant	No
Overall Height	3-1/2 in
Heat Rating	160
Height	3-1/2 in
IAPMO Listed	No
Installation Type	Wall Mount
Insulated	No
Length	3 in
Lights Included	No
Material	Brass
Maximum Pressure	100 psi
Maximum Temperature	160
NSF Certified	No
Number of Handles	Single Handle
Origin	Domestic
Overall Depth	3 in
Overall Length	3 in
Fitting Sizes	1/2 in
Overall Width	3-1/2 in
Overflow Included Yes or No	No
Pillow Included	No
Plug Diameter	Yes
Scald Guard	Yes
Style	Classic
Trim Only	No
UL Listed	No
Valve Body Material	Brass
Valve Size	1/2 in
Valve Type	Rough-In Valve
WIFI Enabled	No
WaterSense Labeled	No
Weight	1.3
Hardware Included	Yes
Fitting Size 2	1/2 in
ANSI Specifications	ANSI A112.18.1
Dispenser Only	Yes
ASME Specifications	ASME A112.18
ASSE Standards	ASSE 1016
Antimicrobial	No
Application	Residential
Brand Model Compatibility	M-Core 3-Series
Built-in Stops	No
CARB OTC LEED Compliant	No
CSA Certified	CSA B125.1
Cartridge Type	Ceramic Disc
Color Finish	Unfinished
Color Finish Category	Neutrals
Deck Plate Included	No
Depth	3 in
Diameter	3-1/2 in
Dispenser Type	Hot and Cold
Fitting Size 1	1/2 in
Faucet Connection	PEX
Fits Pipe Size	1/2 in
Faucet Part Type	Rough-in Valve
Faucet Mount	Wall Mount
Faucet Material	Brass
Faucet Height	3-1/2 in
Faucet Connection Size	1/2 in
Escutcheon Width	3-1/2 in
Drain Included	No
Escutcheon Height	3-1/2 in
End Connections	Barbed
End Connection 3	Barbed
End Connection 2	Barbed
End Connection 1	Barbed
EPA Compliant	No
Width	3-1/2 in
